Specifications
Product Name

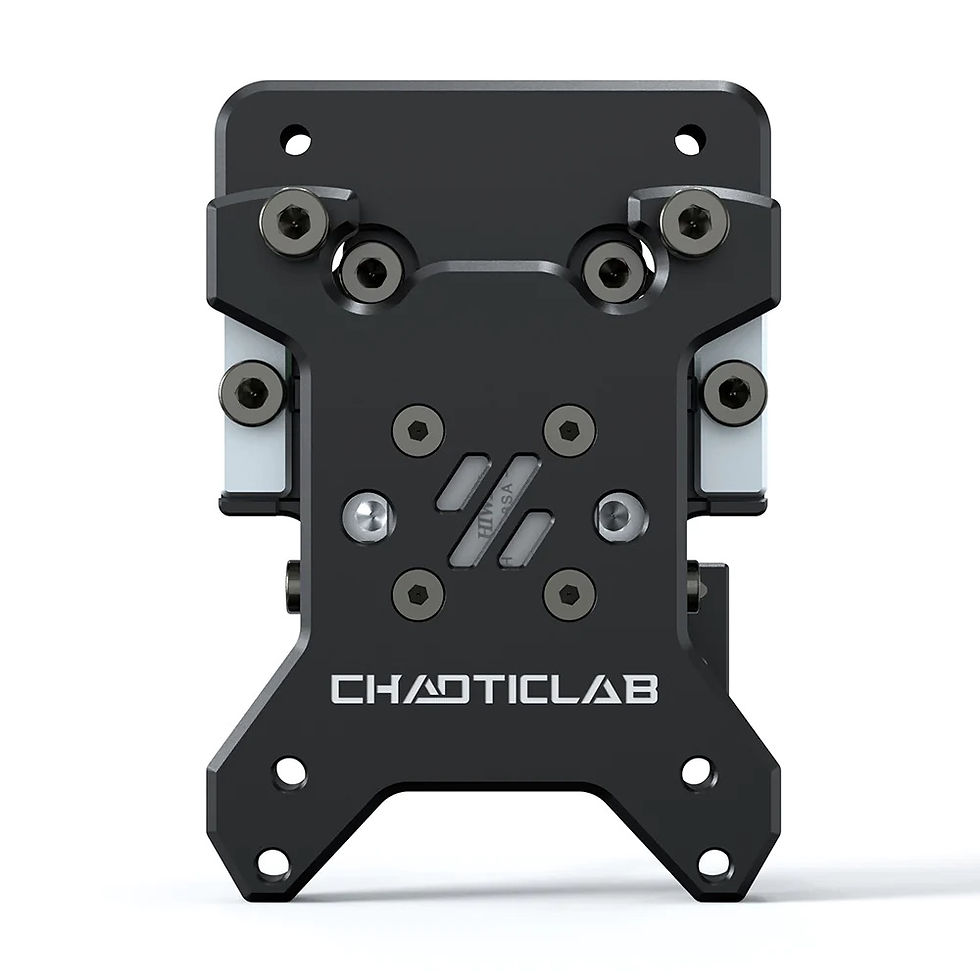

CNC VORON TAP V2
Material
CNC AIl Metal(AL6061/SS304)
Net Weight
65g(including the X-axis limit switch bracket)
Sensor Type
OMRON EE-SX4320
Voltage
5-24V
Linear Guideways
HIWIM MGN7H
Compatibility
VORON2.4 R2, Trident(With MGN12H)


Installation and Usage Notes
XY Stroke Influence
No XY adjustment needed - CNC VORON TAP V2 thickness similar to 2.4R2 X carriage.
MGN12H X-Axis Requirement
CNC VORON TAP V2 requires MGN12 X-Axis, not older MGN9.
CW2-Style Mounted Extruder
Replaces X-carriage and needs front screws like CW2.LGX/Galileo mounts are available.
Bed Mount Stability
500-800g nozzle force during probing. Ensure no bed motion as it reduces accuracy. Not recommended for Voron 1.8/Legacy/Switchwire.Compatibility Test: Firmly tap bed - movement means unsuitable.
Good Mechanical Condition
More precise than previous sensors. Fix known issues before installing.
